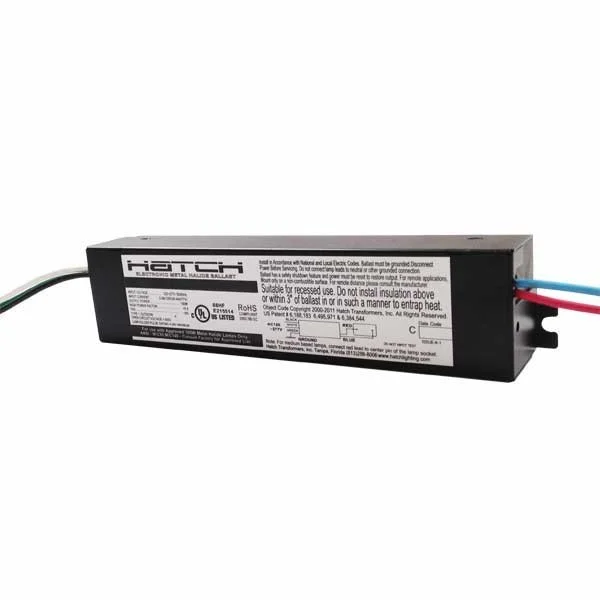

Hatch Transformers MC100-1-F-277U – 100 WATT STANDARD SERIES 1-LAMP ELECTRONIC HID BALLAST

100W – 277V – 1 Lite – Ceramic Metal Halide – Standard – With Feet – Leads Out One Side – Electronic HID Ballast EHID

Hatch Transformer 100 Watt Standard Profile One Lamp 100W – 277V Ceramic Metal Halide Ballast

Ceramic Metal Halide Ballast Electronic HID Features:

Low Voltage Lamp Shutdown

Short Circuit Protection

Micro Processor Controlled: Safety Shut Down Features, Superior Hot Lamp Restrike

High Power Factor, 100% Factory Tested, High Reliability

Open Circuit, No Lamp, Hot Lamp Shutdown, Retry and Ignition Failure Protection

Leads Out One Side with Feet

Environmental Specifications:

Maximum Case Temperature: 80?C at “T” point

Minimum Starting Temperature: -30?C

Sound Rating: A

Safety Listing: Class Type 1 outdoor, RoHS Compliant

Specification sheet:

Hatch Transformers MC100-1-F-277U spec sheet can be reviewed under “Additional Information”

Manufacturer	Hatch Transformers
MPN	MC100-1-F-277U
Collection	Electronic HID Ballasts (EHID)
UPC	797281210777
Spec. Sheet	Click Here
Energy Star Rated	No
UL Rated	Type 1 Outdoor
California Status	Compliant
ANSI Code	M/C90, M/C140
Type	Electronic
Ballast Type	Ceramic Metal Halide
Housing / Case Style	Standard
Mounting	With Feet
Leads	Leads Out One Side
Output Power (Wattage / Equivalent)	100 Watts
Input Voltage	277 VAC
Number of Lights	1-Light
Power Factor	0.95
Length (MOL)	5.52 Inches
Width	3.62 Inches
Height	1.35 Inches
RoHS COMPLIANT (Mercury Free)	Yes
Warranty	5 Years
Master / Inner Carton Quantity	50
Input Amps	0.4A
