Description

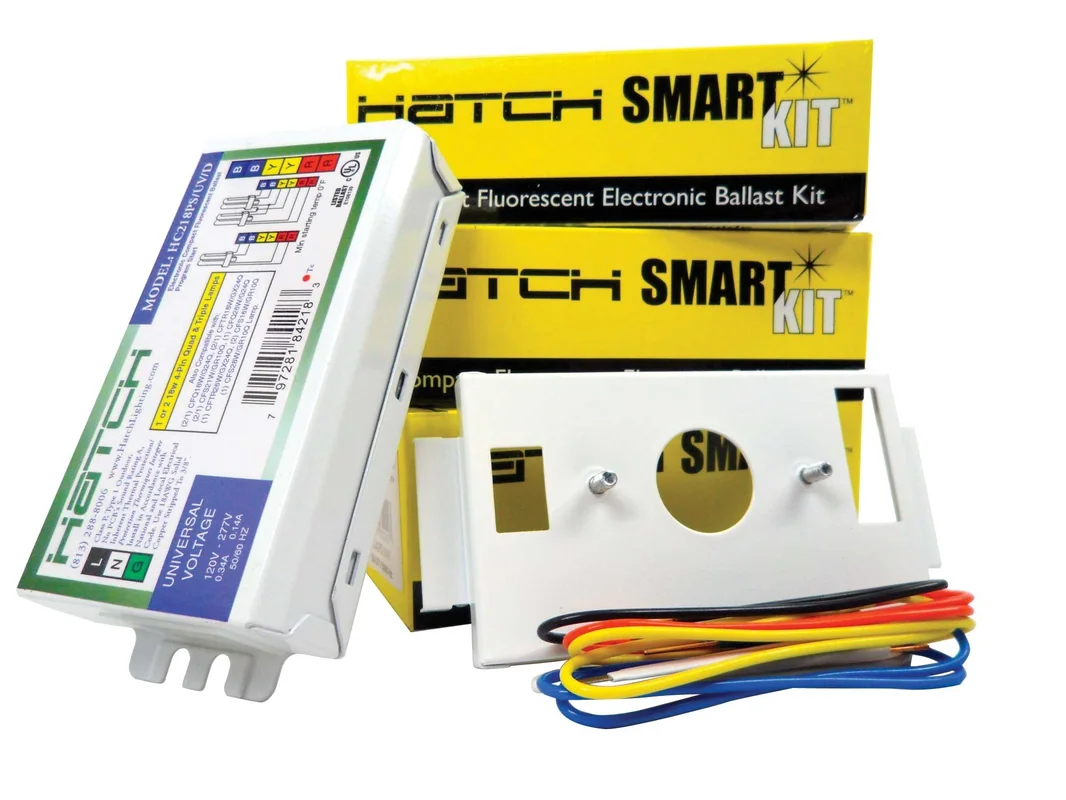

Hatch HC213/PS/UV/K Hatch 13-Watt Compact Fluorescent SmartKit 120-277 VAC Universal 1 or 2 Lamps Bottom and Side Terminals with Feet and Studs

Smart Kit Includes::

• Electronic Universal Programmed Start Ballasts.

• Low profile cases to fit most fixtures.

• Simple mounting with color coded, bottom and side push-in connectors.

• THD under 10% in most applications.

• Maximum case temperature of 90° C which is beneficial when used in recessed fixture applications.

• Wires, wire removal tool adapter plate with studs for maximum flexibility.

• Mounting plate uses simple crimp tabs to mount to ballast. There are no small screws or mounting hardware to lose.

• Ability to use a single ballast for one or two lamp applications

Equivalent or replaces:

Hatch Transformers HR1300-277BF

GE BIAX: F13DBX or F13TBX

OSRAM: CF13DD/E or DULUX D/E 13

PHILIPS: PL-C 13W/4P

Manufacturer	Hatch Transformers
MPN	HC213/PS/UV/K
Collection	Compact Fluorescent Electronic Ballast
UPC	797281852137
Energy Star Rated	No
California Status	Compliant
Type	Electronic
Ballast Type	Compact Fluorescent
Housing / Case Style	Low Profile
Mounting	Bottom Feed With Studs
Leads	Leads Bottom Feed
Output Power (Wattage / Equivalent)	13 Watts
Input Voltage	120 – 277 VAC Universal
Finish	White
Length (MOL)	4.32” inches
Width	2.4” inches
Height	1.00” inches
RoHS COMPLIANT (Mercury Free)	Yes
Warranty	5 Years
Advance Equivalent	ICF-2S13-H1-LD
GE Equivalent	GEC213-MVPS-SE, GEC213-MVPS-BES
Hatch Equivalent	HR1300-277BF
Keystone Equivalent	KTEB-213-UV-TP-PSD
Osram Equivalent	QTP 1/2x13CF/UNV
Robertson Equivalent	PSM213CQMV
Universal Equivalent	C213UNVSE000K/BE/BES
Master / Inner Carton Quantity	20
Bulb Base Type	4-Pin
Bulb Type	Compact Fluorescent (CFL)
