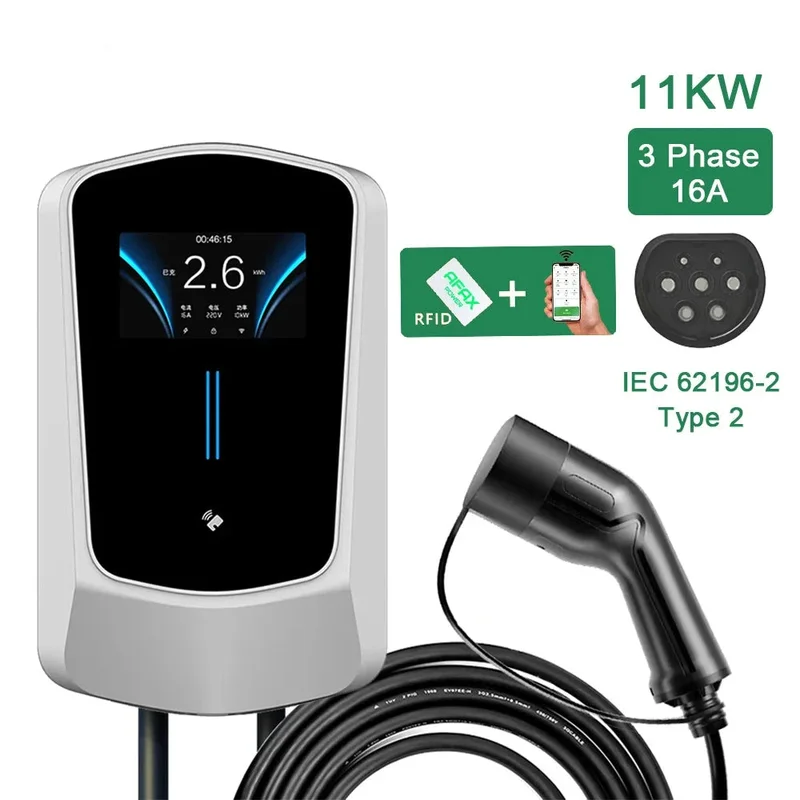

Description

• Dimensions: Length: 295 mm, Width: 180 mm, Height: 120 mm
• Weight: 5 kg
• Cable Length: 5 m
• Power Options: 7.6 kW / 11 kW / 22 kW
• Voltage Options: AC 220V / AC 380V
• Current: 32A
• IP Rating: IP55, IK10
• Charger Type: Charging Station
• Input Voltage Frequency: 50Hz / 60Hz
• Efficiency: ≥ 98%
• Insulation Resistance: ≥ 10 MΩ
• Control Module Power Consumption: ≤ 7W
• RCD: AC 30mA
• Operating Temperature: -30℃ to +50℃
• Storage Temperature: -40℃ to +80℃
• Ambient Humidity: 5%–95%, no frost or condensation
• Altitude Limit: Not exceeding 2000 meters
• Status Indication: LED
• Display Screen: Optional 4.3-inch LCD color screen
• Start Mode: Card swipe (RFID)
• Charging Interface: GB/T 20234.2-2015

Features

• Faster Charging Speed: Supports 7.6 kW, 11 kW, and 22 kW models for faster and more convenient home charging.
• Smart EV Charger: Equipped with an intelligent chip to monitor voltage, current, charging time, and power consumption.
• Wi-Fi Connectivity: Tuya Smart App integration allows remote control, real-time notifications, scheduling, and current setting.
• Multiple Protection: Includes lightning-proof, leakage, overvoltage, overheat, and overcurrent protection, as well as IP55 waterproofing and UL94V-0 flame resistance.
• LED Indicators: Provides clear status updates for easy monitoring.
• Mobile App Control: Full remote control and monitoring via the app, including charging appointments and adjustable current settings.

Control Box Functions

• Leakage Protection: Auto-recovery after restart.
• Voltage Protection: Self-check and recovery for overvoltage and undervoltage conditions.
• Lightning Protection: Ensures safe operation in adverse weather.
• Overcurrent and Overheat Protection: For safe and stable charging.
• Ground Protection: Enhanced operational safety.
• Adjustable Current: Options for 8A, 10A, 13A, 16A, and 32A.
• RFID Card Function: Secure charging access.
• Charging Scheduler: Set appointments via the app for added convenience.

Connectivity

• App
