Description

ShineRetrofits Input:

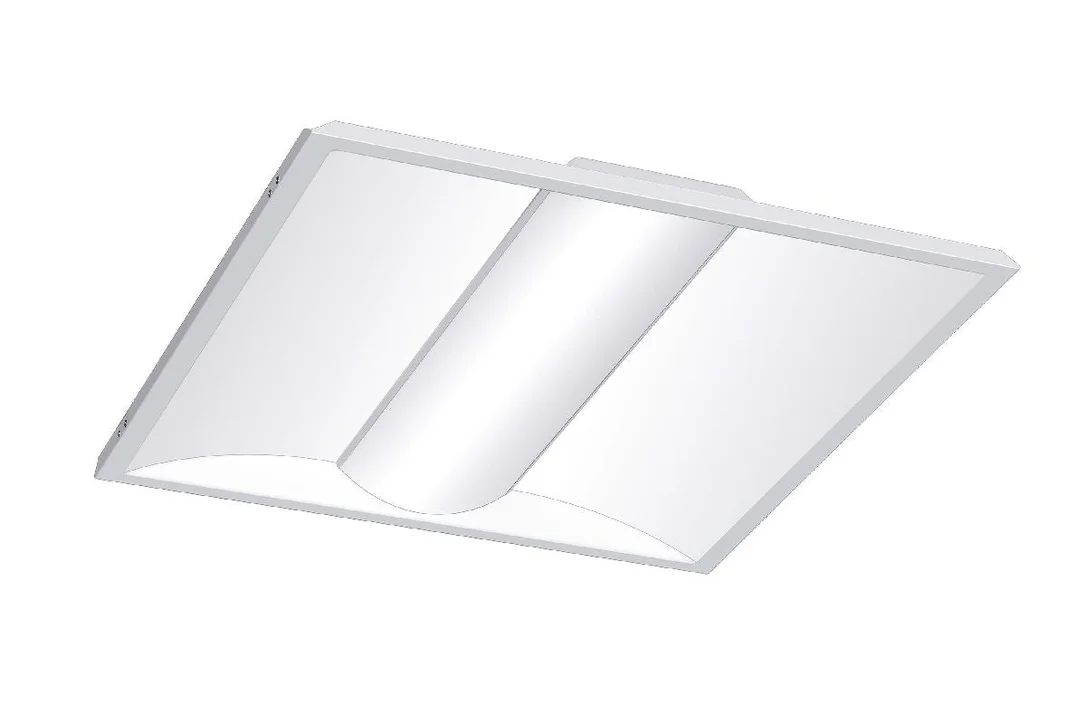

GE Lighting’s Lumination™ PCL LED volumetric center lens troffer light is designed for new construction and retrofit applications. It features a slim, low-profile design and is available in 2×2 and 2×4 sizes, with selectable lumens and wattage options. The fixture also offers field-selectable color temperatures of 3500K, 4000K, and 5000K, providing flexibility for various indoor general lighting needs. Built with a durable die-formed steel housing and frosted polypropylene lens, it is damp location rated, CSA certified, and offers 0-10V dimming with a 1% dim-to-off function. The PCL Series is IC rated and comes with a 5-year limited warranty.

Features:
• Slim, low profile
• Suitable for indoor general lighting in both new construction and retrofit solutions
• Housing: Die formed code-gauge steel
• Lens: Frosted Polypropylene
• Lumens: 2×2 3250/3750/5000 lumens (Field Selectable), 2×4 3750/5000/6000 lumens (Field Selectable
• Wattage: 2×2 23/27/38 (Field Selectable), 2×4 25/35/45 (Field Selectable)
• CCT: 3500/4000/5000K (Field Selectable)
• Dimming: Standard 0-10V, 1% Dim to Off
• Typical Mounting: Fits standard T-Bar grid (drop ceilings)
• Insulation Contact: Type IC Rated
• Damp Location rated
• CSA Certified
• Please refer to the DLC QPL website for the latest and most complete information: http://www.designlights.org/QPL
• Current’s Limited 5-year Warranty
