Description

ShineRetrofits Input:

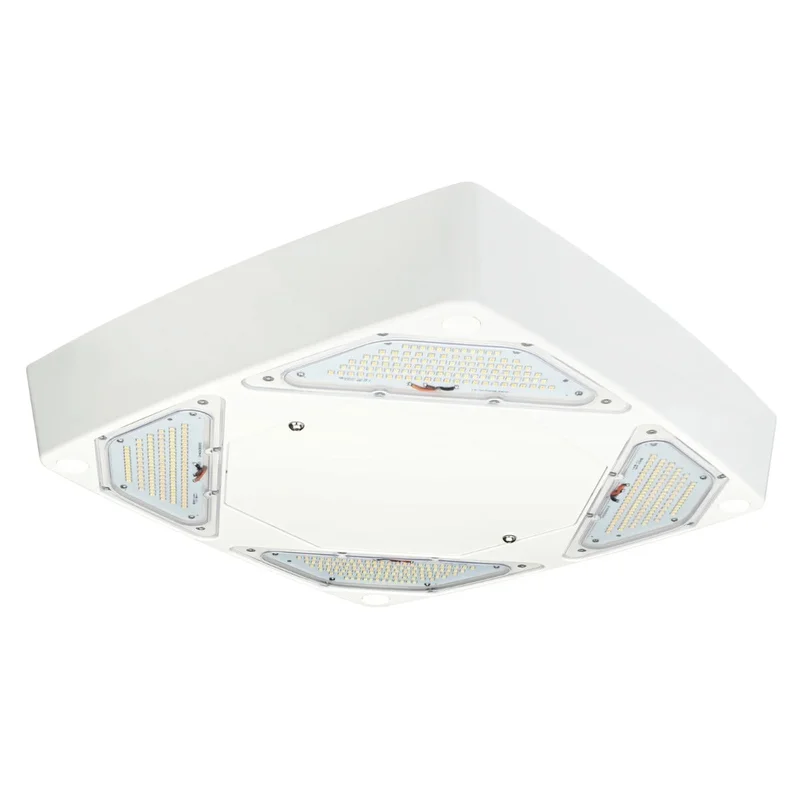

The Jarvis Lighting FLX-10ML20 LED Gas Station Canopy Light Fixture is a dimmable, power and color selectable solution designed for maximum flexibility. Available with flat lens, drop lens, and directional optics, it can produce up to 22,800 lumens of bright, efficient light. The optional High Output Module can be rotated to aim light exactly where it’s needed, making it ideal for gas stations and canopy applications. Backed by a 10-year warranty, surge protection, and JarvisLink compatibility, the FLX-10ML20 Series delivers long-lasting, customizable performance.

Features:
• Optional directional High Output Module can be rotated to aim the light wherever it is needed
• Available with flat lens, drop lens, and directional optics
• Adjustable color temperature and power levels, 10 Year Warranty
• Compatible with JarvisLink networked lighting control system
• Produces up to 22,800 lumens
• Input Voltage: 120-277V 50/60Hz or 277-480V 50/60Hz
• Power Factor: >.95 at full load
• Total Harmonic Distortion: <13% full load
• Operating Temperature Range: -25°C to 45°C Ambient (-14°F to 113°F)
• Power supply includes internal 6kV surge protection.
An additional 10kV surge protection can be added as a field-installed option.
• 0-10V dim-to-off dimming leads are the default on all models.
The power supply is capable of providing 12VDC auxiliary
output power for a variety of accessories.
