Description

120-277V Future Fit LED Kit

3500K-5000K

>80 CRI

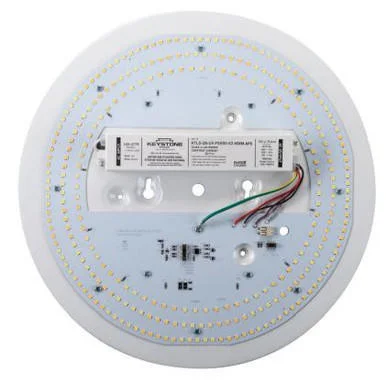

Experience the next generation of LED lighting with the Keystone KT-RKIT28PS-13CP-8CSC-VDIM FutureFit LED Kit

This innovative solution combines exceptional versatility, energy efficiency, and user-friendly features, making it ideal for various retrofit applications.

Unveiling the Power Color Select Advantage:

• Effortless Customization:Easily adjust light output (lumen level) and color temperature (3500K warm white to 5000K daylight white) with a convenient slide switch, eliminating the need for multiple SKU management.
• Streamlined Efficiency:Reduces inventory complexity while offering the perfect lighting solution for diverse needs within a single product.

Additional Key Features and Benefits:

• High Color Rendering Index (CRI >80):Ensures accurate color rendering, crucial for task areas and retail environments.
• Exceptional Efficiency:Delivers impressive lumen output while minimizing energy consumption.
• Universal Compatibility (120-277V):Operates on a wide range of voltage, making it suitable for various applications.
• Dimmable via 0-10V Dimmers:Create the perfect ambiance and control light levels effortlessly.
• Pre-Assembled Convenience:Includes the LED module, driver, and mounting accessories for a seamless installation process.
• Safety Certifications:UL Listed for safety and field installation, ensuring peace of mind.
• Rugged Construction Heat Management:Built with high-quality materials and a complete heat sink for long-lasting performance.
• Wide Beam Angle (120°):Provides broad light distribution, ideal for general lighting applications.
• Optional Diffused Lenses:Enhances light distribution and eliminates glare (included in the kit).
• Versatile Applications:Widely used in troffers, wraps, strips, and vapor tight fixtures.

Keystone KT-RKIT28PS-13CP-8CSC-VDIM LED Retrofit Kit Specifications:

Electrical:

• Input Voltage: 120-277VAC
• Dimmable: Yes (0-10V Dimmers)

Light Output:

• Color Temperature (CCT): Selectable (3500K Warm White to 5000K Daylight White) – controlled bya slide switch
• Lumens: Adjustable (exact lumen output depends on selected power level – refer to manufacturer datasheet)
• Color Rendering Index (CRI): >80

Physical:

• Form Factor: Rectangular
• Beam Angle: 120°
• Optional Diffused Lens: Included

Performance:

• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• THD (Total Harmonic Distortion): <20%
• LED Chip Package: 2835
• Heat Sink: Integrated, no additional heat sink required

Safety Certifications:

• UL Listed 1598C (suitable for field installation)
• Meets FCC Part 15 Class B (consumer) limit for EMI
