Description

ShineRetrofits Input:

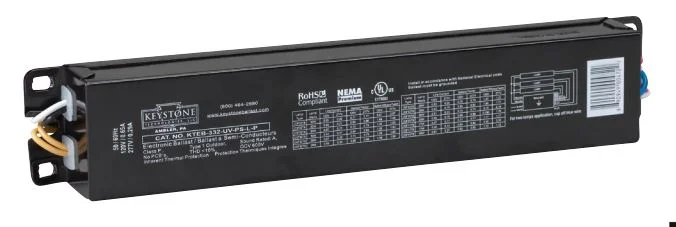

Keystone KTEB-332-UV-PS-L-P T8 Program Start High-Efficiency Electronic Ballast is designed for 3 Lite F17/25/32 T8 NEMA Premium Reduced Output. The ballast is UL and cUL listed, equipped with anti-striation circuitry, and rated Type HL. It features a program start method, parallel lamp connection, and high power factor, operating across 120-277VAC ±10% input voltage at 50/60Hz frequency, and comes with a five-year warranty.

Product Features:
• 2014 DOE Compliant
• Sound Rated: A
• Maximum Ambient Temperature: 105ºF, 40ºC
• Maximum Case Temperature: 167ºF, 75ºC
• Meets FCC Part 18 (Class A) Non-Consumer Limits
• Meets ANSI Standard C82.11 and C62.41
• UL, cUL Listed Class P, Type 1 Outdoo
• Anti-Striation Circuitry
• Type HL

Product Specifications:
• STARTING METHOD: Program
• LAMP CONNECTION: Parallel
• INPUT VOLTAGE: 120-277VAC ±10%
• INPUT FREQUENCY: 50/60Hz
• POWER FACTOR: High
• WARRANTY: 5 Years
