Description

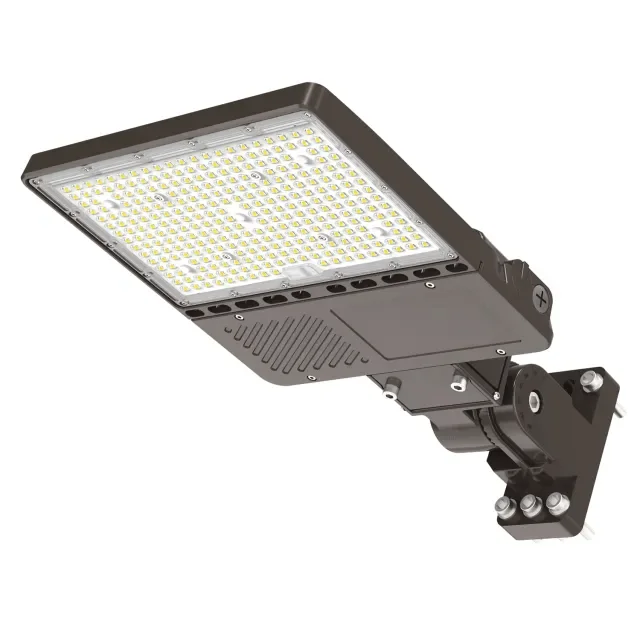

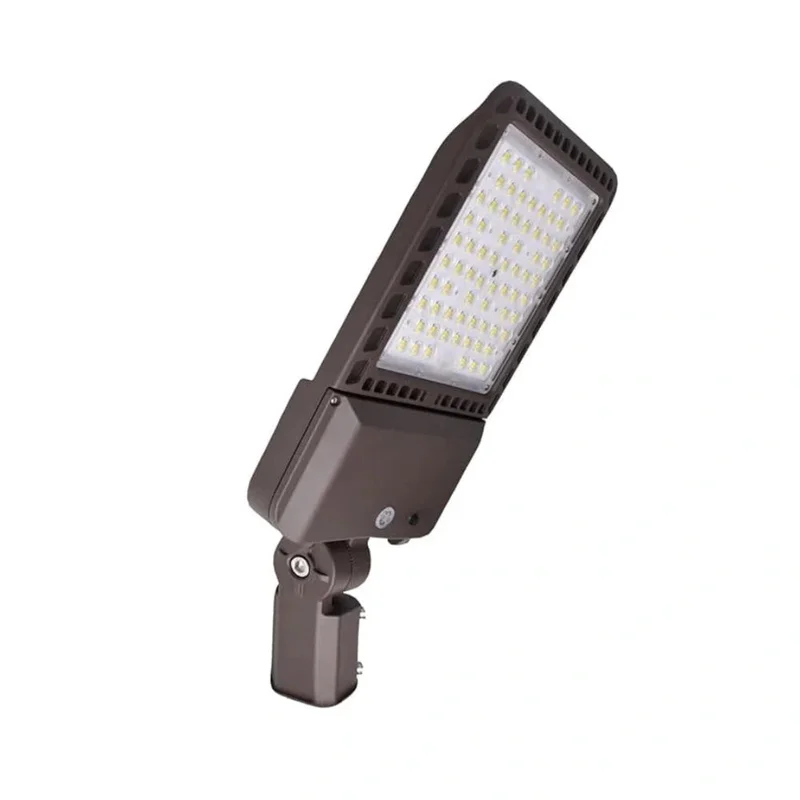

LED Area Light – 80W/100W/120W/150W Selectable Wattage – Up to 22,500lm – 3000K/4000K/5000K CCT Tunable – Shorting Cap Included – DLC 5.1 Premium – Black Finish
Product
Upgrade your outdoor lighting with the Lumens Depot LED Area Light, a high-efficiency, power and CCT selectable fixture designed to deliver superior performance and energy savings in a wide range of commercial and industrial applications. This fixture allows you to choose from four wattage options (80W/100W/120W/150W) and three color temperatures (3000K/4000K/5000K) to meet diverse site lighting requirements, all from a single SKU.
Producing up to 22,500 lumens at an exceptional 150 lm/W, this LED area light provides crisp, uniform illumination with a Type III distribution, ideal for parking lots, roadways, campuses, and building perimeters. Its 0-10V dimming capability supports energy management systems, while the included shorting cap makes it ready for photocell or smart sensor integration.
Crafted with a rugged, die-cast aluminum housing in a durable black finish, this fixture offers excellent thermal management with an integrated flow-through heat sink, ensuring optimal performance in harsh environments from -40°C to 45°C. It also features a 1.8ft power cord for flexible installation and DLC 5.1 Premium certification for maximum rebate eligibility.
Key Features
-
Selectable Wattage: 80W / 100W / 120W / 150W
-
Selectable CCT: 3000K / 4000K / 5000K (Tunable)
-
Maximum Output: Up to 22,500 lumens
-
Efficiency: 150 lm/W
-
Input Voltage: 120-277 VAC
-
Dimming: 0-10V dimmable
-
Optics: Type III light distribution
-
Surge Protection: 10kV (optional)
-
Photocell Ready: Shorting cap included
-
Housing: Die-cast aluminum with black powder coating
-
Wire Length: 1.8ft UL-rated power cord
-
Color Rendering: CRI ≥70
-
Certifications: DLC 5.1 Premium, UL, RoHS
-
Warranty: 5 Years
Ideal Applications
-
Commercial Parking Lots
-
Street & Roadway Lighting
-
Campuses and Business Parks
-
Outdoor Walkways & Perimeters
-
Industrial & Municipal Lighting
Trust Lumens Depot for high-performance lighting solutions that combine flexibility, durability, and energy savings—all in one smart, rebate-ready fixture.
