Description

ShineRetrofits Input:

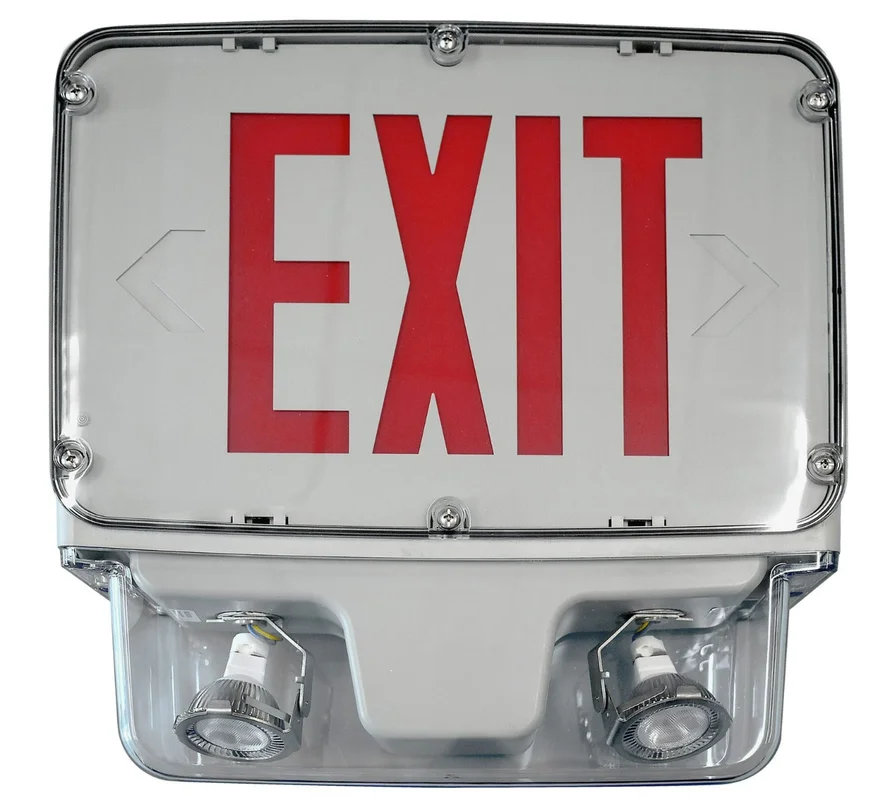

Mule Lighting’s HLCWLEZU Exit and Emergency Combo is designed for hazardous locations, combining an LED exit sign with powerful MR-16 emergency lamp heads. Its corrosion-resistant, reinforced polycarbonate housing and UV-stabilized lens ensure durability in harsh environments. Equipped with a maintenance-free NiCd battery, self-diagnostics, remote capacity, and tamper-proof hardware, it provides reliable 90-minute emergency illumination. It delivers dependable safety and compliance in demanding applications.

Features:
• Two fully adjustable, ultra bright 3.3 watt high performance MR-16 base LED lamp heads for optimized center-to-center spacing.
• Long-life, energy efficient Red or Green LED EXIT sign illumination.
• Die-cast mounting brackets provided for surface wall-mount installation.
• Pre-installed conduit hub for conduit and pendant-mount installation.
• Housing is fiberglass reinforced polycarbonate construction in gray finish.
• Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws.
• EZ snap-out Chevron directional indicators.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery).
• Charge rate/power “ON” LED indicator light and magnetic test switch for mandated code compliance testing.
• 6V/12V maintenance-free, rechargeable NiCd battery (12W, 15W models).
• Offers 4.8W and 7.8W of remote capacity (6V/12V DC output) standard on the 12W and 15W models.
• Internal solid-state transfer switch automatically connects the internal battery to LED board and lamp heads for a minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery
charging to recharge a discharged battery in 24 hours.
• Five-year warranty on all electronics and housing. Batteries prorated for five years.
• Meets UL924, UL844, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
• IP66 rated for Ingress protection.
• Rated for Class 1, Division 2, Groups A, B, C, & D.
• UL listed for wet locations (0°C – 50°C).
