Description

ShineRetrofits Input:

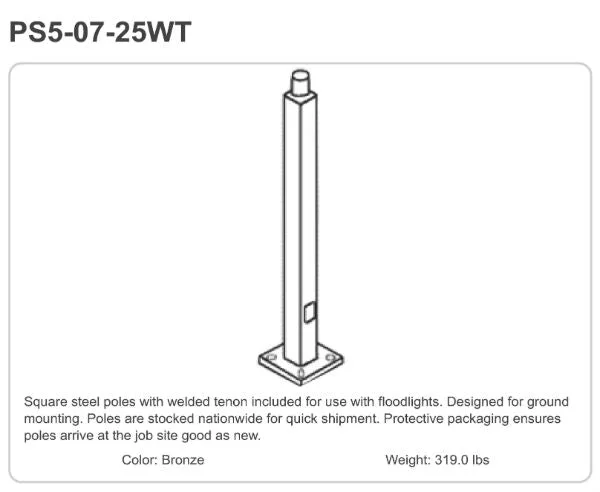

Designed for ground mounting, the RAB Lighting 4 inch square welded tenon poles are an excellent solution for securing floodlights. Construted of 7 gauge steel, the poles are further protected by a TGIC polyester coating. And they are CSA listed for use in wet locations. NOTE: Forklift not provided upon delivery — customer is responsible for removing poles from the delivery truck.

*Shaft: 46,000 p.s.i. minimum yield.
*Hand Holes: Reinforced with grounding lug and removable cover.
*Base Plates: 36,000 p.s.i. minimum yield.
*Shipping Protection: All poles are shipped in individual corrugated cartons to prevent finish damage.
*Color: Bronze powder coating
*Height: 20 FT.
*Weight: 225 lbs.
*Gauge: 7
*Wall Thickness: 3/16″
*Shaft Size: 4″.
*Hand Hole Dimensions: 3″ x 5″.
*Bolt Circle: 8 1/2″.
*Base Dimension: 8″.
