Description

REX1CDP1218

For more information, open this spec: PDF

---

Dual-Lite Emergency Lighting

Application

Self-contained explosion proof emergency lighting units. Designed for “normally off” operation of unit-mounded or remote lighting fixtures.

Features

XPB EXPLOSION PROOF EMERGENCY UNIT

• Suitable for use in Class I, Division I and II, Groups C and D environments

• High-strength, copper-free aluminum housing

• Quick access thread-on cover

• Test switch included

• Maintenance-free pure-lead battery

• 6 and 12 volt models

• Remote capacity

• 120/277 VAC operation

• Low-voltage battery disconnect

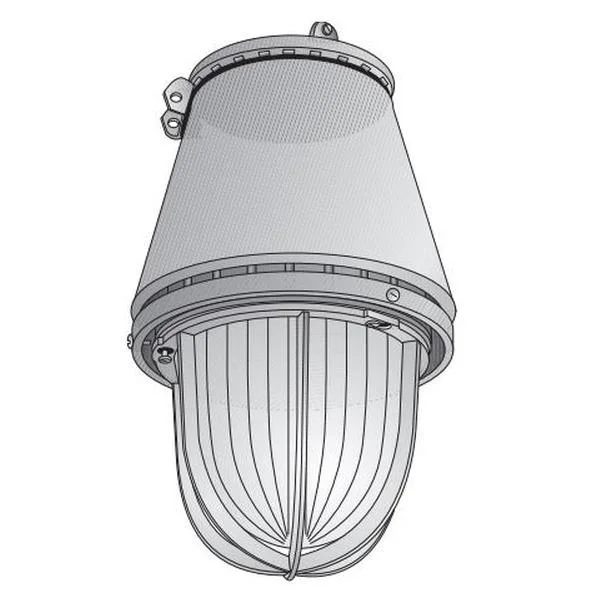

EXPLOSION PROOF EMERGENCY LUMINAIRES

• Supplied with all fittings required for connection to XPB unit

• Impact resistant, prismatic glass globes, incandescent lamps

• Medium-gray, epoxy-clad, copper-free aluminum housing, 6 or 12 volt models

Options

• XPB explosion proof unit: time delay relay (15-minute retransfer delay, 120VAC only)

Temperature Range

• XPB explosion proof unit: 68°F – 86°F (20°C – 30°C)

• Explosion proof emergency luminaires: T5 (100°C) temperature code for 40°C ambient in C1D1 Groups C, D

• Explosion proof emergency luminaires: T3°C (160°C) temperature code for 40°C ambient in C2D1 Groups E, F, G Class 3

Compliance

• UL Listed to Standard 924 and Standard 844 (Hazardous Location) for NEC C1D1 Groups C, D and C2D1, Groups E, F, G Class 3

• NFPA 101 (Life Safety Code)

• NFPA 70 (National Electrical Code)
