Description

60W Replacement LED Driver

1350mA Fixed Output

120–277VAC

0–10V Dimmable

Class 2

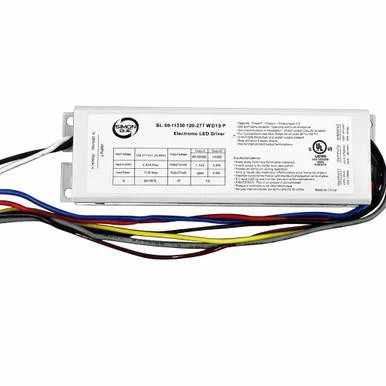

The Simon Quic SIL 60-I1350 120-277 W D1S P is a 60W constant current LED driver designed for commercial lighting applications requiring a fixed 1350mA output. Operating on universal 120-277VAC input, this Class 2 driver delivers stable performance across a 32-44VDC output range.Featuring integrated 0-10V dimming and a 12V auxiliary output for low-power accessories, this driver supports modern control strategies while maintaining reliable operation. The metal housing with convection cooling enables dependable performance in enclosed fixture installations.

Electrical Specifications

• Maximum Output Power: 60W
• Output Current: 1350mA ±5%
• Output Voltage Range: 32-44VDC
• Auxiliary Output: 12VDC, 0-200mA (2.4W max)
• Input Voltage: 120-277VAC
• Operating Input Range: 108-305VAC
• Frequency: 50/60Hz
• Efficiency: 84% Typical
• Power Factor: >0.98 @120V, >0.90 @277V
• THD: <20%
• Inrush Current: <40A Peak @120VAC
• Turn-On Delay: <0.75 Seconds
• No Load Voltage: <60VDC

Dimming Controls

• Dimming Type: 0-10V
• Dimming Range: 10-100%
• Dim to Off: 0.3V ±0.2V

Environmental Specifications

• Operating Temperature: -20°C to 55°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5-95% Non-Condensing
• Cooling Method: Convection
• Rated Life: >50,000 Hours @ tc=90°C
• MTBF: >300,000 Hours

Compliance Construction

• Class 2 Output
• Safety: UL 8750, UL1310 Class 2, CSA C22.2 No. 250.13
• EMC: FCC Part 15 Class B
• RoHS Compliant
• Housing: Metal Case
