Description

Superb performance delivered in a small package. The 2.5 inch Low Voltage Recessed Downlight series offers smooth and crisp light for under cabinet and tight recessed spaces where miniature apertures are desired. May be used with any WAC compatible 2.5inch HR-837, HR-834, or HR-836 trims.

• Finish:Black or White
• Made of Aluminum
• (1) 50W LED Bulb
• Bulb Included
• Bulb Color Temp: 3000
• Bulb Average Hours: 25000
• Bulb Lumens: 450
• Bulb Beam Spread: Flood
• Bulb Shape: MR16
• Voltage: 120
• Dimmable: Yes
• Wire Length: Airtight: Yes”
• Integral electronic 12V transformer with 120V input, 1W minimum load, and 50W maximum with HR-802, and HR-801.
• May be used with any WAC compatible 2.5 inch HR-837, HR-834, or HR-836 trims.

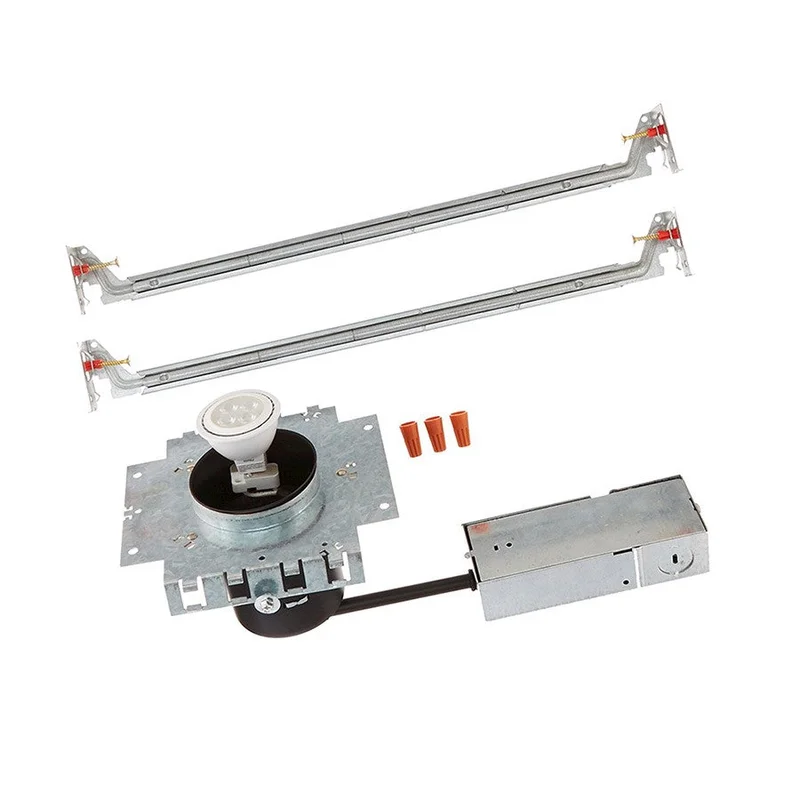

• Supplied with hanger bars adjustable from 12”-24” to accommodate various joist construction and grid sizes. Hanger bars have slots for easy mounting on “T” bars.
• J-Box: Three knockouts provided for wire entry and exit. Suitable for chain wiring.
• Smooth and continuous dimming to 10% with an ELV Electronic Low Voltage dimmer.
• Standards: UL & cUL Damp Location Listed.
• Hardwired
• Part of the Tesla Collection
• Style: Functional
• For Use in Interior Locations
• Safety Rating: UL, cUL
• Warranty Info: 5 Years Functional, 2 Years Finish

Overall Dimensions: 14″(L) x 5.58″(W) x 5″(H)

Minimum Height: 12″

Maximum Height: 24″

Backplate/Canopy Dimensions: IC Rating: No”(Dia) x Cutout: 3″(H)

Item Weight: 2.86 lbs.
